GSEA结果的网络可视化

原创 DoubleHelix 生物信息云 2023-06-14 11:29

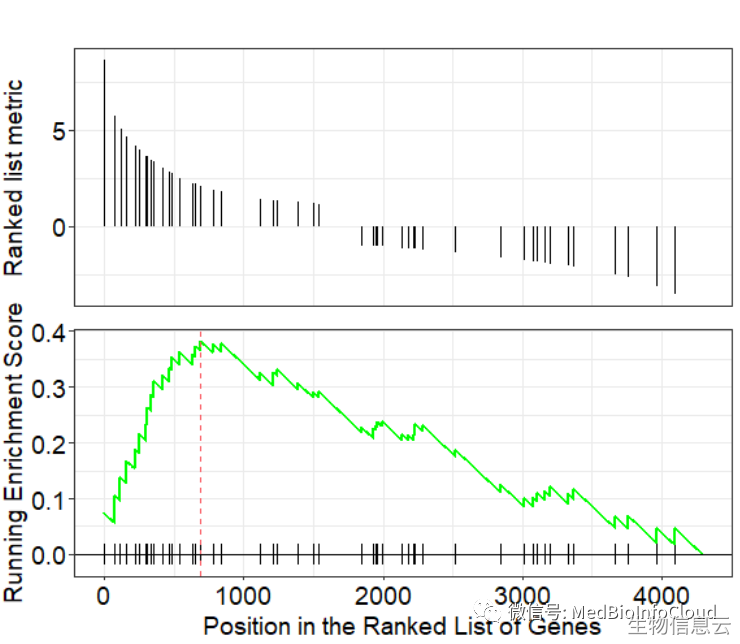

通常GSEA的结果会用下面类似的图可视化。

但是，对于多个通路的可视化，以及想展示通路之间的关联时就不友好了。

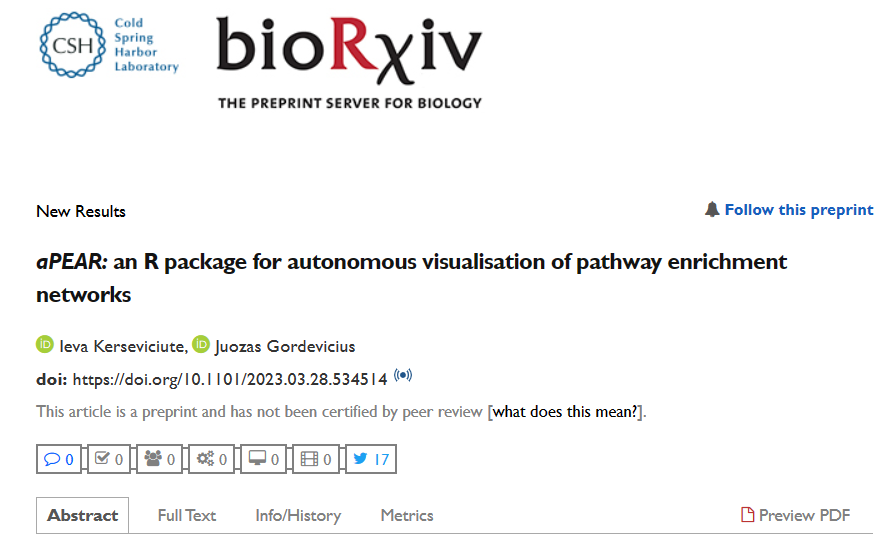

aPEAR包可以通过检测相似路径的聚类并将其可视化为富集网络，简化路径富集分析结果，其中节点和边分别描述路径和它们之间的相似性。这减少了重叠路径的冗余，并有助于注意数据中最重要的生物学问题。

# install.packages("aPEAR")library(data.table)library(ggplot2)library(dplyr)library(stringr)library(clusterProfiler)library(DOSE)library(org.Hs.eg.db)library(aPEAR)

加载差异分析的结果

差异表达分析可参考：生物信息数据分析教程视频——13-3种R包(DESeq2、edgeR和limma)进行RNAseq的差异表达分析与比较

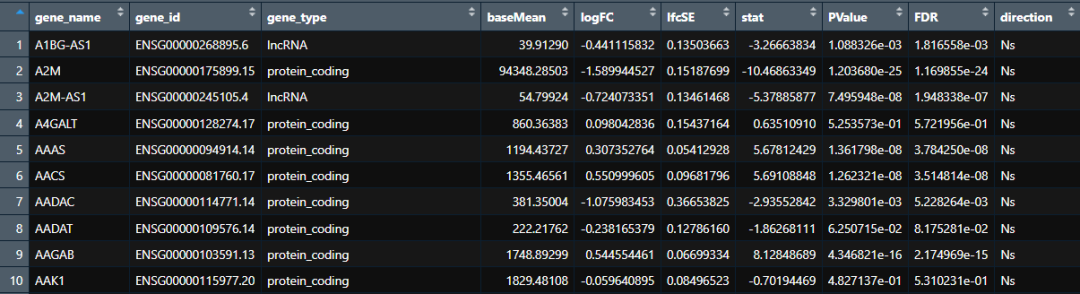

#DEGload("DESeq2-filtered.Rdata")head(DEG)

处理一下数据，用于GSEA分析。

pcDEG = DEG[DEG$gene_type == "protein_coding",]geneMap <- bitr(pcDEG$gene_name,                 fromType="SYMBOL",                 toType="ENTREZID",                 OrgDb="org.Hs.eg.db")geneMap = geneMap[!duplicated(geneMap$SYMBOL),]
sordeg <- pcDEG[(pcDEG$gene_name %in% geneMap$SYMBOL),]sordeg <- merge(pcDEG,geneMap,by.x = "gene_name",by.y = "SYMBOL")
sordeg <- arrange(sordeg, desc(logFC))
geneList = sordeg$logFCnames(geneList) = sordeg$ENTREZID

2.执行GSEA

GSEA分析【视频】；clusterProfiler包进行KEGG,GO,GSEA富集分析.

# data(geneList)set.seed(42)enrich <- gseGO(geneList, OrgDb = org.Hs.eg.db, ont = 'BP')

3.可视化网络

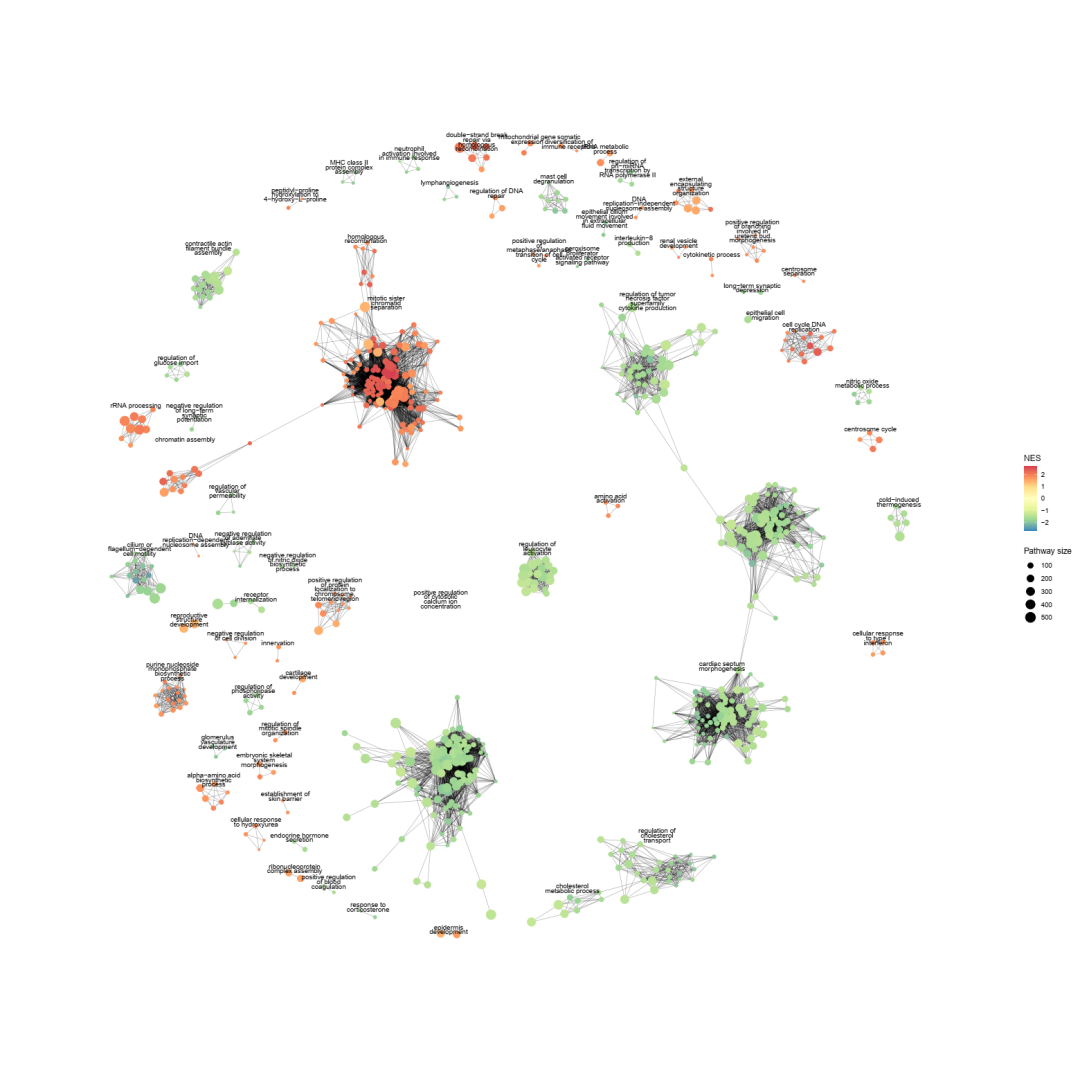

pdf("Network.pdf",height = 20,width = 20)enrichmentNetwork(enrich@result)dev.off()

所有结果展现太复杂，我们选取前100个富集通路进行可视化：

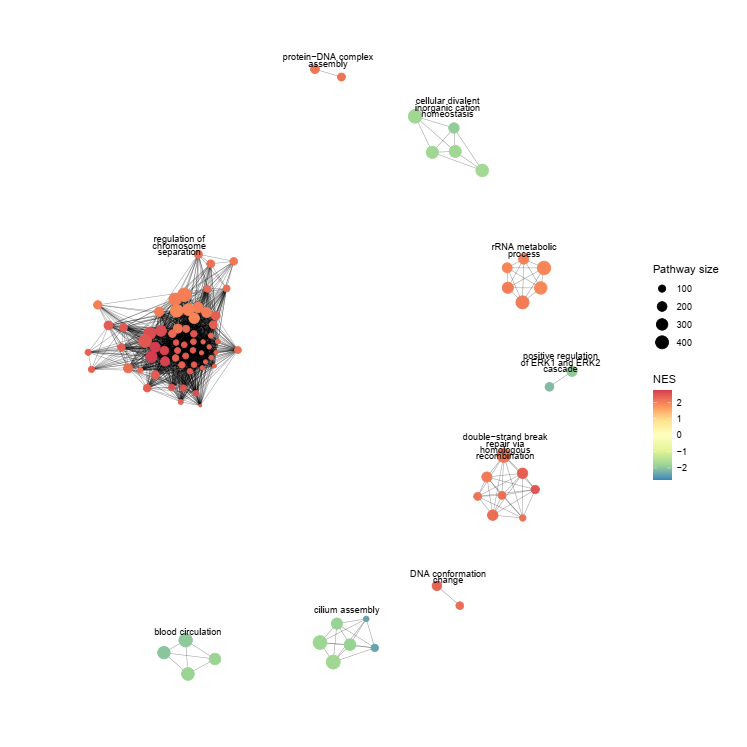

pdf("Network2.pdf",height = 10,width = 10)enrichmentNetwork(enrich@result[1:100,])dev.off()

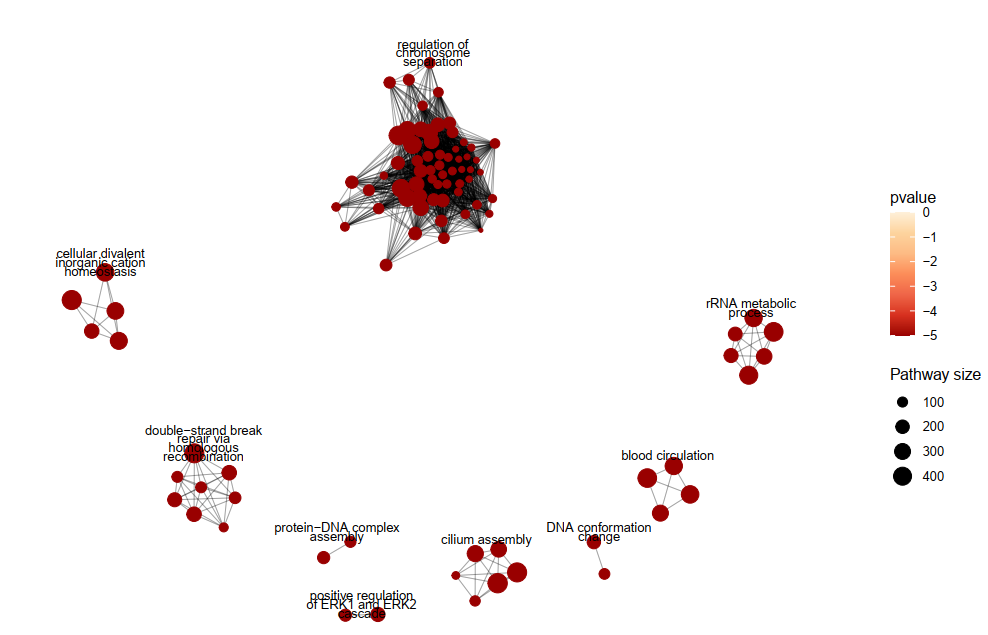

通过 colorBy 列和 colorType = 'pval'指定颜色通道。

pdf("Network3.pdf",height = 10,width = 10)enrichmentNetwork(enrich@result[1:100,],                   colorBy = 'pvalue',                   colorType = 'pval', pCutoff = -5)dev.off()

使用函数 findPathClusters 获取冗余通路的聚类。 findPathClusters 接受一个带有富集结果的 data.frame，并返回一个通路聚类列表和相似度矩阵：

clus<- findPathClusters(enrich@result,                              cluster = 'hier',                              minClusterSize = 5)

clus <- findPathClusters(enrich@result,                              cluster = 'hier',                              minClusterSize = 5)

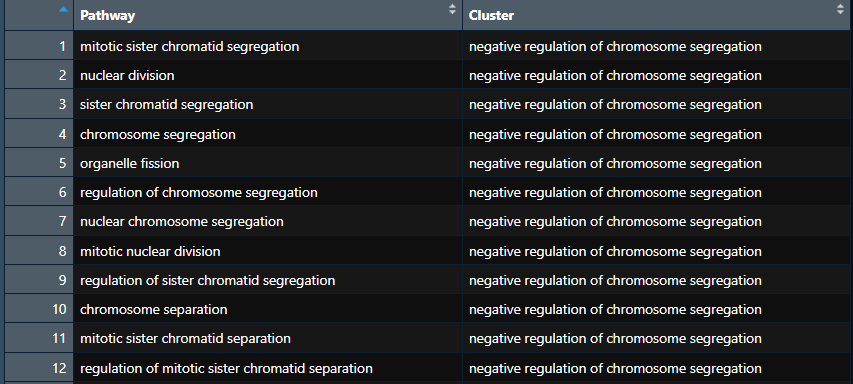

clusdf = clus$clusters

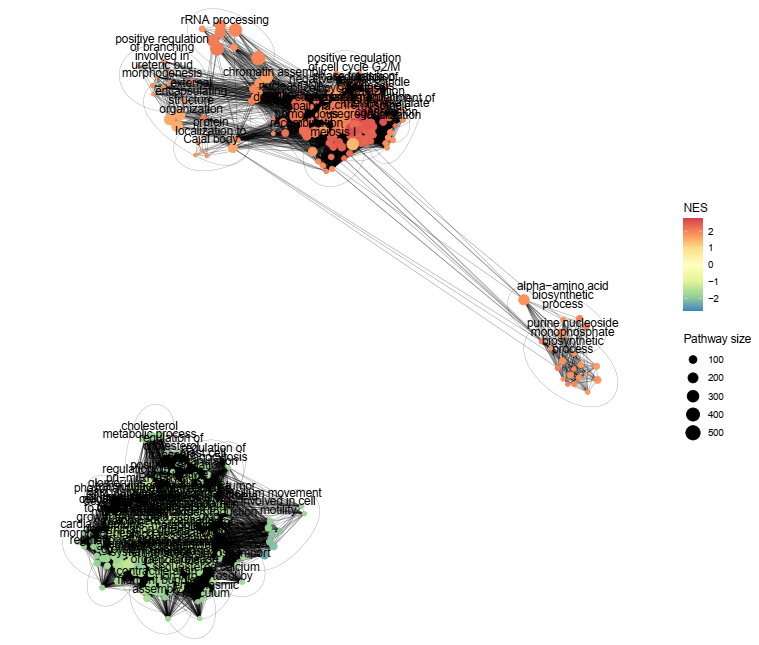

pdf("Network4.pdf",height = 10,width = 10)plotPathClusters(  enrichment = enrich@result,  sim = clus$similarity,  clusters = clus$clusters,  fontSize = 4,  outerCutoff = 0.01, # Decrease cutoff between clusters and show some connections  drawEllipses = TRUE)dev.off()

完整代码：

# install.packages("aPEAR")library(data.table)library(ggplot2)library(dplyr)library(stringr)library(clusterProfiler)library(DOSE)library(org.Hs.eg.db)library(aPEAR)
#DEGload("DESeq2-filtered.Rdata")head(DEG)
pcDEG = DEG[DEG$gene_type == "protein_coding",]geneMap <- bitr(pcDEG$gene_name,                 fromType="SYMBOL",                 toType="ENTREZID",                 OrgDb="org.Hs.eg.db")geneMap = geneMap[!duplicated(geneMap$SYMBOL),]
sordeg <- pcDEG[(pcDEG$gene_name %in% geneMap$SYMBOL),]sordeg <- merge(pcDEG,geneMap,by.x = "gene_name",by.y = "SYMBOL")
sordeg <- arrange(sordeg, desc(logFC))
geneList = sordeg$logFCnames(geneList) = sordeg$ENTREZID
# data(geneList)set.seed(42)enrich <- gseGO(geneList, OrgDb = org.Hs.eg.db, ont = 'BP')
pdf("Network.pdf",height = 20,width = 20)enrichmentNetwork(enrich@result)dev.off()
dim(enrich@result)
pdf("Network2.pdf",height = 10,width = 10)enrichmentNetwork(enrich@result[1:100,])dev.off()pdf("Network3.pdf",height = 10,width = 10)enrichmentNetwork(enrich@result[1:100,],                   colorBy = 'pvalue',                   colorType = 'pval', pCutoff = -5)dev.off()

clus <- findPathClusters(enrich@result,                              cluster = 'hier',                              minClusterSize = 5)
clusdf = clus$clusters
pdf("Network4.pdf",height = 10,width = 10)plotPathClusters(  enrichment = enrich@result,  sim = clus$similarity,  clusters = clus$clusters,  fontSize = 4,  outerCutoff = 0.01, # Decrease cutoff between clusters and show some connections  drawEllipses = TRUE)dev.off()
